New Valkyrie 3th generation
Only 30 units will be hand made for year 2026
Prototypes were tested over a year in all types of conditions.
Valkyrie brings you the best from the both worlds. Light and nimble e-MTB and powerful e-motorbike.
Valkyrie 3V specifications
Boxxbike Valkyrie is bigger, then you might think. It is 200 mm longer then Surron or Talaria. Ground clearance is 300mm.
Frame:
Frame: Heat treated aluminium 6061 T6

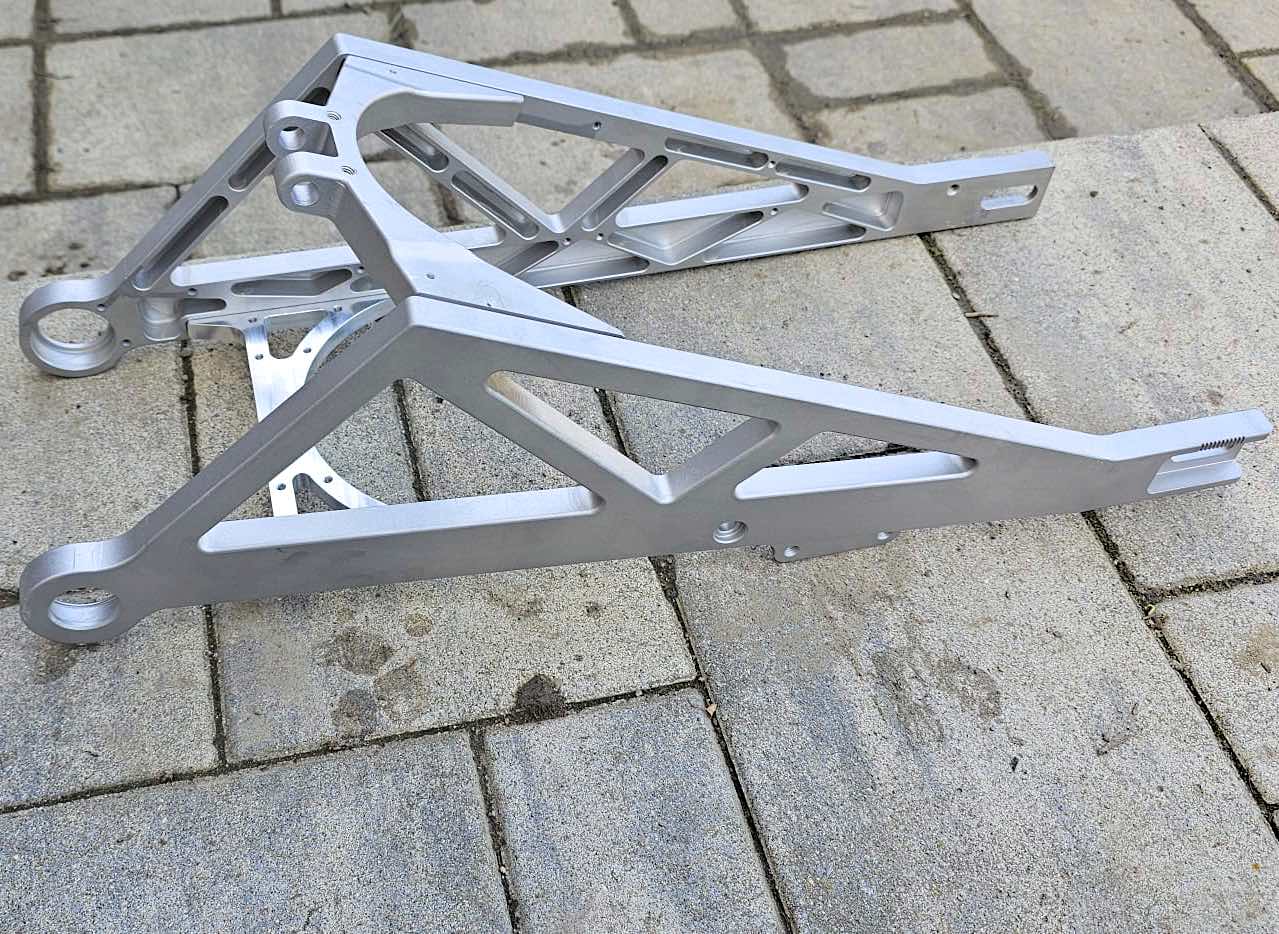

Swing arm: Heat treated aluminium 6061 T6
Color: Anodized black
Crank arms: 6063 T6
Pedals: Boxxbike aluminium T7
Bike dimensions:
Wheel base: 1340mm
Ground clearance: 300mm
Seat height: Lowest position 910mm
Weight: 38Kg
Suspension:
Suspension rear: DNM or equivalent
Suspension front: RoxkShox Boxxer
Wheels:
Wheel size: 27,5 inch Schwalbe
Rims: 584×32
Hub front/rear: Boxxbike custom made
Tyres: Schwalbe
Spokes front: 10G
Spokes rear: 10G
Brakes:
Brakes front and rear: Shimano
Brake rotor: 203mm
Motor:
Boxxbike BLDC motor IPM type, nominal power 2000W peak power 14Kw with phase current 400A
Battery:
Battery: Battery: 2200 Wh, 44.4V,
Cells: 3500mA
Electronics:
Controller: Silicxon SC
Display: Silixcon CAN comminucation
Pass sensor: Boxxbike
Charger: 10A, 4 hours charging time (from 0-100%)
Shifter:SRAM X5 9-Speed Trigger Shifter – rear 9-speed – black
SRAM X5 9-Speed Rear Derailleur – medium – black
Drive Train:
Motor chain: 219H
Pedal chain: KMC 9speed – 116links

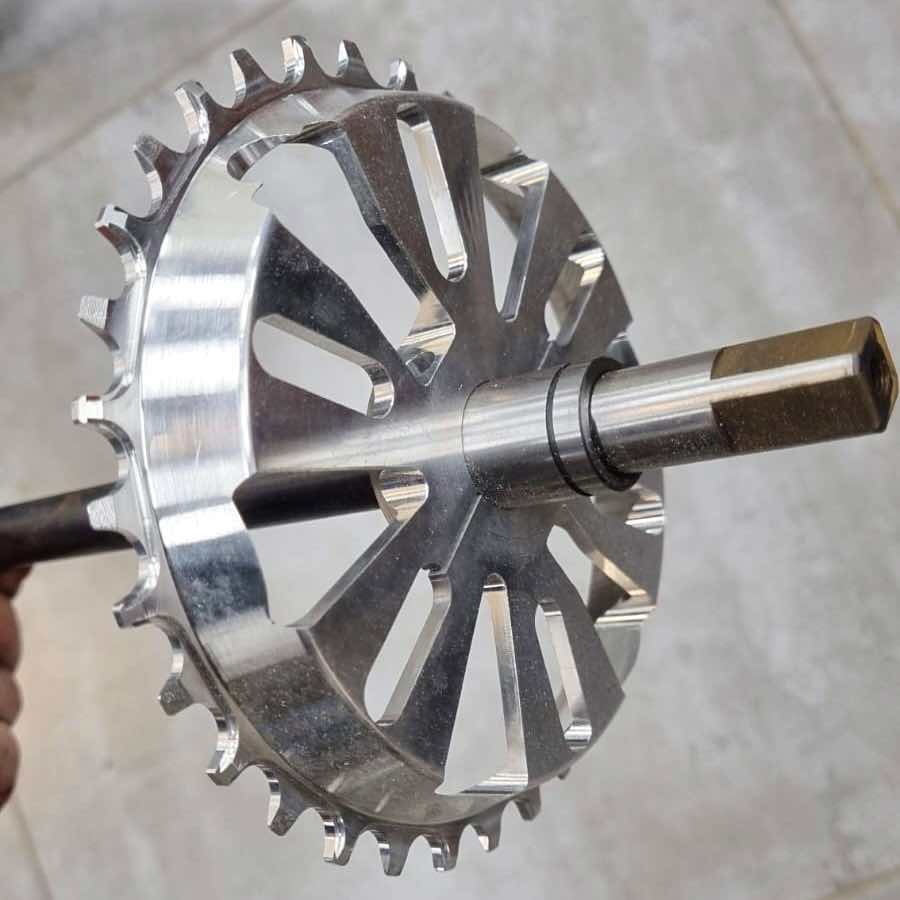

Sprockets: Rear sprocket 98t, Motor sprocket 13t
Riding modes:
Position: 1-4 e-moto throttle, 6-9 e-bike pedal assist
e-bike ridding modes: 250W, 500W, 1000W and 1500W (pedal assist only)
e- moto ridding modes: 2Kw, 6Kw, 10Kw and 14Kw (throttle only)
Range: 30-180Km
Max speed: 70 Km/h (70kg rider)
Warranty:
Frame: 2 years
Battery: 1 year
Electronic parts: 2 years
Spare parts and service
We have always available spare parts and service technicians to help you with any problem you might have with your Boxxbike. e-shop link
Frame warranty 2 years, battery 1 year.
